威爾遜P380E發電機配件銷售CV2473 濾清器、機油冷卻器、OE52501水泵

項目 零配件號碼 最近的部分號碼 描述

1 OE50885/1 1 OE50885/1 套

6 CV2473 2 CV2473 濾清器

7 OE51432 1 OE51432 TUBESTACK

8 OE44678 2 OE44678 密封 - O 的圈

9 ST24106 2 ST24106 螺旋

10 ST16256 2 ST16256 墊圈

11 ST26903 2 ST26903 墊圈

12 ST20136 4 ST20136 栓塞

13 ST49857 4 ST49857I 墊圈

14 UF1570 2 UF1570 固正螺釘

15 0920054 2 0920054 墊圈

16 UF1574 2 UF1574 螺拴

17 0920054 2 0920054 墊圈

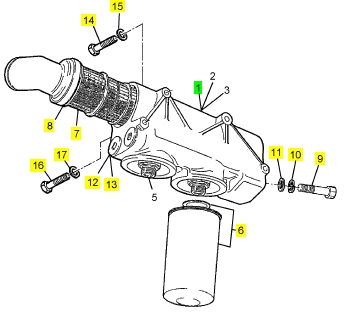

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE50885/1 1 OE50885/1 CASING

6 CV2473 2 CV2473 OIL FILTER

7 OE51432 1 OE51432 TUBESTACK

8 OE44678 2 OE44678 SEAL - O RING

9 ST24106 2 ST24106 SCREW

10 ST16256 2 ST16256 WASHER

11 ST26903 2 ST26903 WASHER

12 ST20136 4 ST20136 PLUG

13 ST49857 4 ST49857I WASHER

14 UF1570 2 UF1570 SETSCREW

15 0920054 2 0920054 WASHER

16 UF1574 2 UF1574 BOLT

17 0920054 2 0920054 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51113 1 OE51113 PIPE

2 CV12198 1 CV12198 DRAIN PLUG

3 ST49891 1 ST49891 WASHER

4 ST91211 1 ST91649 HOSE

5 ST46408 7 ST46408 CLIP

6 UF1564 2 UF1564 SETSCREW

7 OE24601 2 OE24601 DISTANCE PIECE

8 0920054 2 0920054 WASHER

9 OE51114 1 OE51114 PIPE

10 ST91585 2 ST91585 HOSE

11 ST46405 8 ST46405 CLIP

12 ST91210 1 ST91210 HOSE

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51213 1 OE51213 WATER PIPE

2 ST91211 1 ST91649 HOSE

3 ST46408 4 ST46408 CLIP

4 OE50548 1 OE50548 CLAMP

5 OE51255 2 OE51255 NUT

6 ST15902 2 ST15902 WASHER

7 OE50997 1 OE50997 BRACKET

8 UF1552 3 UF1552 BOLT

9 0920054 3 0920054 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51160 1 OE51160 OIL PIPE

2 ST20557 1 ST20557 ADAPTOR

3 ST49858 1 ST49858 WASHER

4 OE50995 1 OE50995 CLIP

5 UF5314 1 UF5314 STRIP

6 UF1604 1 UF1604 SETSCREW

7 0920055 1 0920055 WASHER

8 OE29660 1 OE29660 SPACER

9 UF1552 1 UF1552 BOLT

10 0920054 1 0920054 WASHER

11 ST21913 2 ST21913 SEAL - O RING

12 OE51280 1 OE51280 CONNECTION

13 OE48701 1 OE48701 GROOVE PIN

14 OE50154 2 OE50154 SEAL - O RING

15 ST20102 1 ST46077 PLUG

16 ST49852 1 ST49852 WASHER

17 UF1516 1 UF1516 BOLT

18 0920053 2 0920053 WASHER

19 ST15902 1 ST15902 WASHER

20 ST21914 2 ST21914 SEAL - O RING

21 OE48707 1 OE48707 BOBBIN

22 ST21914 2 ST21914 SEAL - O RING

23 OE50956 1 OE50956 HOUSING

24 OE50153 1 OE50153 SEAL - O RING

25 OE50965 1 OE50965 GASKET

26 UF1504 4 UF1504 BOLT

27 0920053 4 0920053 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51005 1 OE51005 PIPE

2 ST20554 1 ST20554I ADAPTOR

3 ST49891 1 ST49891 WASHER

4 OE12028 2 OE12028 CLIP

5 OE9692 2 OE9692 BUSH

6 UF1600 2 UF1600 SETSCREW

7 0920055 2 0920055 WASHER

8 OE51122/1 1 OE51122/1 DISTRIBUTOR

16 UF1559 2 UF1559 SETSCREW

17 0920054 2 0920054 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

9 OE51122 1 OE51122 DISTRIBUTOR

10 ST20554 1 ST20554I ADAPTOR

11 ST49891 1 ST49891 WASHER

12 OE8491 1 OE8491 ADAPTOR

13 ST49852 4 ST49852 WASHER

14 ST20552 1 CV72340 ADAPTOR

15 ST46077 1 ST46077 PLUG

項目 零配件號碼 最近的部分號碼 描述

1 OE52501 1 OE52501 水泵

(1) OE52501R 1 OE52501R 水泵 -交換

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE52501 1 OE52501 WATER PUMP

(1) OE52501R 1 OE52501R WATER PUMP - EXCHANGE

項目 零配件號碼 最近的部分號碼 描述

2 OE51350 1 OE51350 套

3 OE52029 1 OE52029 密封 -油

4 OE52028 1 CV71889 密封 - 水泵

5 OE51349 1 OE51349 動葉輪

6 OE1376 2 OE1376 滾珠橋承

7 OE52500 1 OE52500 橋

8 OE50918 1 OE50918 間隔器

9 OE50919 1 OE50919 傳動機構

10 OE50917 1 OE50917 CIRCLIP

11 OE3191 1 OE3191 螺帽

12 OE50914 1 OE50914 蓋

13 OE52032 1 OE52032 密封 - 水泵

14 ST17035 1 ST17035 鍵

15 ST10626 1 ST10626 封閉砂條

16 OE51351 1 OE51351 迷宮

17 OE51352 1 OE51352 迷宮

18 OE51354 1 OE51354 管

19 OG849 1 OG849 螺帽

20 ST10964 1 ST10964 密封 - O 的圈

21 UF1562 5 UF1562 螺拴

22 UF4354 5 UF4354 螺帽

23 0920053 5 0920053 墊圈

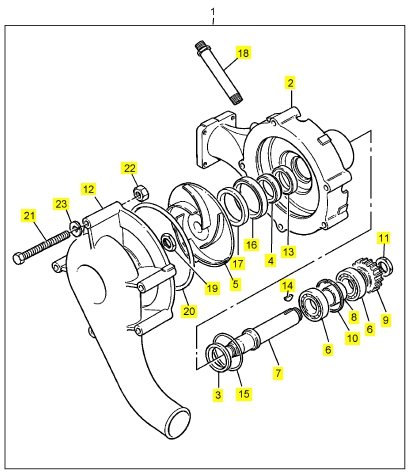

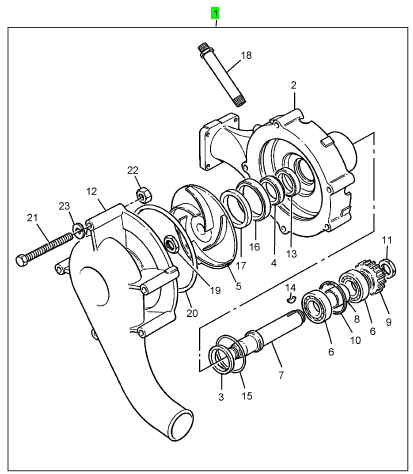

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 OE51350 1 OE51350 CASING

3 OE52029 1 OE52029 SEAL - OIL

4 OE52028 1 CV71889 SEAL - WATER PUMP

5 OE51349 1 OE51349 IMPELLER

6 OE1376 2 OE1376 BALL BEARING

7 OE52500 1 OE52500 SHAFT

8 OE50918 1 OE50918 SPACER

9 OE50919 1 OE50919 GEAR

10 OE50917 1 OE50917 CIRCLIP

11 OE3191 1 OE3191 NUT

12 OE50914 1 OE50914 COVER

13 OE52032 1 OE52032 SEAL - WATER PUMP

14 ST17035 1 ST17035 KEY

15 ST10626 1 ST10626 SEALING RING

16 OE51351 1 OE51351 LABYRINTH

17 OE51352 1 OE51352 LABYRINTH

18 OE51354 1 OE51354 PIPE

19 OG849 1 OG849 NUT

20 ST10964 1 ST10964 SEAL - O RING

21 UF1562 5 UF1562 BOLT

22 UF4354 5 UF4354 NUT

23 0920053 5 0920053 WASHER
