威爾信柴油發電機控制屏、威爾信柴油發電機控制屏有哪些型號與功能？

㈠控制屏

1001控制屏：⑴儀表：電壓表、電流表、頻率/轉速表、運行時間表、冷卻水溫表、潤滑油壓力表、電池電壓表

⑵有報警燈的故障停機保護( 高水溫、低油壓）

⑶控制：開關停機運行/預熱/啟動、急停按鈕、告警測試

2001系列：允許通過遙控信號，自動控制發電機組，因而適用TI系列自動負載切換屏組成市電/發電機組全自動切換系統。

2001控制屏⑴ 儀表：電壓表、電流表、頻率/轉速表、運行時間表、冷卻水溫表、潤滑油壓力表、電池電壓表。

  ⑵控制：開關停機運行/預熱/啟動、急停按鈕、告警測試

  ⑶故障停機保護： 啟動失敗、高水溫、低油壓、超速/緊急停機

  ⑷控制屏遙控信號/觸點：遙控急停連接線端、故障警報信號干觸點

  Access4000控制屏：提供開放的通訊協議具有遠程監控，能提供多種操作和保護功能的自啟動系統。

  Access4000：

   ⑴  全數字具有4行超寬的LCD顯示發電機組相關工作數據。

   ⑵  各種故障報警及停機功能

   ⑶ 開放通訊接口（R422或R485)

   ⑷ 失電數據自動存儲

   ⑸ 故障歷史數據

   ⑹ 分級保護控制密碼

6200系列控制屏：具有自動并機功能的自啟動數碼式  控制屏，配合市電失壓檢測模塊(AMF)實現全自動的并車。能做到自動分配有功功率和無功功率，即使機組型號不同，自動負載分配程序也同樣能夠根據機組的輸出能力自動按比例分配負載。

 6200控制屏：

  ⑴  全數字2×4行LCD顯示發電機組相關工作數據

   ⑵  各種故障報警及停機功能

   ⑶ 開放通訊接口（R422或R485)

   ⑷ 相關系統控制

   ⑸ 相關操作控制

4、威爾信機組其它功能介紹

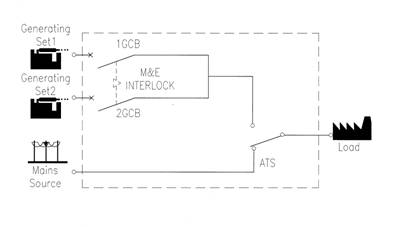

威爾信機組配置2001控制屏及TI/TX的ATS雙機備用自動系統（－）

4、威爾信機組其它功能介紹

   威爾信機組并機系統功能（二）

 1.手動和自動控制單臺機組的啟停及輸出空氣開關；

 2.LCD寬屏液晶參數顯示：油壓、水溫、電池電壓、運行時間等油機參數，三相相電壓、線電壓、線電流、頻率、功率因數、有功功率、無功功率、電度等電參數，并聯匯流母線電壓、母線與發電機電壓、頻率、相位差等同步參數；

 3.發電機組低油壓、高水溫、超速、超頻、速度信號丟失、起動失敗、過流、電壓過高或過低、逆功率保護停機；

 4.發電機組充電失敗、水溫高、油壓低、電池電壓低、傳感器故障報警；

 5.類似黑匣子的歷史事件記錄；

 6.參數設置授權控制；

 7.方便功能擴展。

威爾信機組并機系統功能（三）

1.自動并車，自動按設定的比例實現有功和無功負載的無差分配，自動根據負載波動投入和撤出機組，即當負荷較輕時會自動退出部分機組，當負荷較重時會自動投入部分機組 ；

2.實現多臺備用時不停電負載轉移；

3.啟動負載儲備及運行負載儲備的設定功能。當負荷在任意點反復波動時都不會造成機組   頻繁投切，可保證在負載變動時提供穩定的電力；

4.啟動優先順序可編程設定；

5.機組之間通過CAN工業控制器高速總線進行通訊；

6.具有可編程輸入/輸出口；

7.易于實現單臺手動機組擴容為多臺監控并機；

8.根據需要方便擴展并機單元，最多可達8臺。

9.通過精確設置參數、優化負載管理來達到可靠和經濟運行的目的。

Will believe it diesel generator control panel, will what type diesel generator control panel and function?

Obtaining the control panel

1001 control panel: (1) meter, voltmeter, ammeter, frequency/tachometer, operation schedule, cooling water thermometer, lubricating oil pressure gauge, battery voltmeter

2 have alarm lamp fault shutdown protection (high temperature, low oil pressure)

(3) control: switch stop run/preheating/start, stop button, the alarm test

2001 series: allows remote control signal, automatic generating set control, thus applicable TI series automatic load switch panel of mains/generator automatic switching system.

2001 control panel (1) meter, voltmeter, ammeter, frequency/tachometer, operation schedule, cooling water thermometer, lubricating oil pressure gauge, battery voltmeter.

2: control switch stop run/preheating/start, stop button, the alarm test

(3) downtime protection: failed to start, high temperature, low oil pressure, speed/emergency stop

(4) control panel/remote control signal contact: remote stop cable end, fault alarm and dry contact

Access4000 control panel: open communication protocols with remote monitoring, and can provide a wide range of operation and protection function since the launch of the system.

Access4000:

(1) full digital line with 4 super wide LCD display generator set work related data.

2 all kinds of fault alarm and stop function

(3) open communication interface (R422 or R485)

(4) loss of electricity data storage automatically

The historical data [5]

[6] grading control password protection

Series 6200, control panel, with functions of automatic weaver since the launch of the digital control panel, with mains pressure loss (AMF) to realize automatic detection module and a car. Can do automatic distribution of active power and reactive power, even if the unit model, automatic load distribution program also can also according to the output of the unit capacity proportional distribution load automatically.

6200 control panel:

(1) full digital 2 x 4 line LCD display generator set work related data

2 all kinds of fault alarm and stop function

(3) open communication interface (R422 or R485)

(4) related to the control system

5] related operational control

Unit 4, will believe other functions is introduced

Will believe the unit configuration control panel and TI/TX 2001 ATS double machine automatic backup system (-)

Unit 4, will believe other functions is introduced

Will letter weaver system function (2)

1. Manual and automatic control of a single unit start-stop and output air switch;

2. LCD widescreen LCD parameters display oil pressure, water temperature, oil machine parameters, such as battery voltage, running time, three phase voltage and line voltage and line current, frequency, power factor, active power, reactive power, electricity, electrical parameters, such as parallel bus, busbar and busbar voltage generator voltage, frequency and phase synchronization parameters;

3. The generator set low oil pressure, high water temperature, speed, and overclocking, speed signal loss, start-up failure, over current, voltage too high or too low, reverse power protection downtime;

4. The charging generator failure, high temperature, low oil pressure, low battery voltage, sensor fault alarm;

5. Similar to the black box of historical records;

6. Parameters set authorization control;

7. Convenient function extension.

Will letter weaver system function (3)

1. Automatically and car, automatically set according to the proportion of active and reactive load distribution of no difference, automatically according to load into and withdraw from units, namely when the load is lighter unit automatically exit section, when the load is heavier automatically into part of the unit;

2. Achieve more standby when not transfer power load;

3. Start and running load load reserves set functions. When burden fluctuate repeatedly at any point and don't cause frequent crew cut, can guarantee to provide stable power when load changes;

4. Start the priorities can be set in a programming;

5. High-speed industrial controller through the CAN bus communication between units;

6. A programmable input/output;

7. Easy to implement a single manual unit capacity for monitoring weaver;

Unit 8. According to the need convenient extension weaver, up to eight units.

9. Through precise set parameters, optimization of load management to achieve the goal of reliable and economic operation.
